Project Description

(Last Updated On: March 26, 2019)

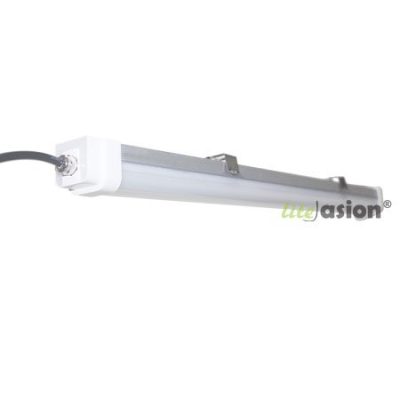

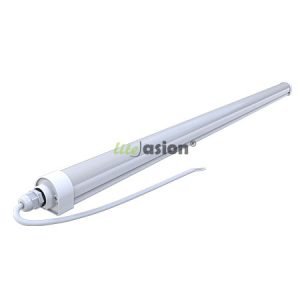

mini led batten |led tri proof |led batten light, waterproof IP65 and IK10, high lumen >100lm/w, TUV approved brand led driver, 5 years warranty.

FUNCTIONS PARAMETERS
Model No.: Mini60-15W, Mini120-30W, Mini150-40W
Power: 15W/30W/40W
Lumen: 1500lm/3000lm/4000lm
Size: L600*W45*H40mm/L1200*W45*H40mm/L1500*W45*H40mm
Input Voltage: AC100V-240V
Power Factor: >0.95
CCT: 3000K, 4000K, 5000K, 6000K
CRI: Ra>80 and R9>10
Light efficacy: >100LM/W
Beam Angle: 120°
IP grade: IP65 & IK10
Lifespan: 40,000H at 40℃ ambient temperature
Work Temperature: -20 – 40℃
Installing way: Surface mounted, Suspended
Material: PC cover + Aluminum base
Accessory: Manual and 1 set of installation screws
Description: led mini tri-proof light|led batten light, waterproof IP65 and IK10, high lumen >100lm/w, Silicon/0-10V/Switch DIMMABLE, Remote/Wireless control, For Parking lot/Apartment/Supermarket Projects.
FEATURES
Power Factor 95%
Efficiency 85%
IP grade IP 65
IK grade IK 10
  • IP65 and IK10
  • Epistar 2835SMD
  • TUV approved brand led driver
  • >100lm/w
  • 3 years warranty
